ROK Wifi Power Quality Analyzer Harmonics Analyzer
Zoom Browse
Product Name: ROK Wifi Power Quality Analyzer Harmonics Analyzer
Product Numbers: PQAN-7620
Product Specifications: Phase: -180~180
Product Unit: Harmonics
Product Remark: Wave Recording
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Power Quality Analyzer
Product Details
【DateTime:2018-09-12 Browse:】【Font: Big Mid Small】【Print】【Close

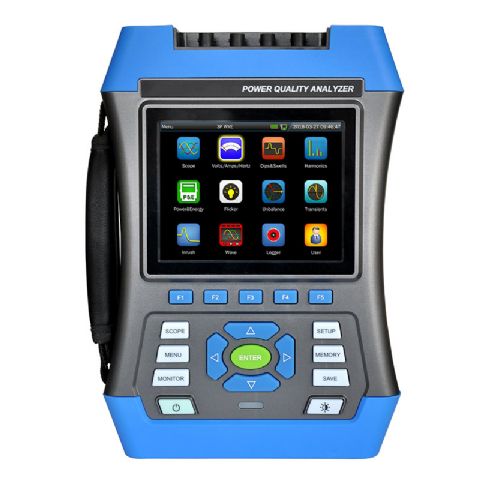

ROK Wifi Power Quality Analyzer

Power Quality Analyzer is a professional portable device that measures and analyzes power system quality, supplies harmonics analysis and power quality data analysis, and it also provides significant memory for data storage. This product includes a standard power cable, voltage test leads (5pcs), alligator clips (5pcs), soft carry bag, and CD with software+user guide
Feature
Volt Amp HzDips and swell
Harmonics
Power and energy
Waveform real-time display(4 voltages/4 currents)
Half cycle RMS measurement (voltage and current)
Measurement of harmonics can be up to 100 times

Specification:

    Selection Table
    Model PQAN7610-SA2200
    Standard compliance IEC61000-4-30 Class A
    Volt Amp Hz
    Dips and swell
    Harmonics ● 100th Max.
    Power and energy
    Unbalance
    Monitor
    Inrush
    Flicker
    Transients
    400Hz
    Wave Recording
    Sample rate 163.84kS/s (50/60Hz)
    TF Card 32GB
    Battery Lithium ion, 7.4V  5200mAh
    GPS/Beidou time synchronization ● (option)
    WIFI
    Input Characteristics
    Number of inputs 4 (3 phase  + neutral) DC coupling
    Voltage Inputs
    Max. input voltage 1000Vrms
    Max. peak measurement voltage 6kV
    Input Impedance 4MΩ
    Current Input
    Type Clamp or current transformer with mV output
    Input Range depends on supplied current clamp
    Input Impedance 50kΩ (SA2100), 100kΩ (SA2200)
    Sampling System
    Resolution 8 channels 16 bits AD
    Sampling Rate

    163.84kS/s (50/60Hz), 8 channels sample

    synchronously

    (SA2200)

    PLL Sync

    4096 points for 10/12 cycles

    (according to IEC61000-4-7)


CT clamps: (Option)

A: Range: 5A,  Output Voltage Ratio: 10mV/A  Accuracy: 0.2%

Working Frequency: 45Hz~55Hz  Clamps Radius: 8mm

Size: 158*43*24mm

B: Range: 50A,  Output Voltage Ratio: 10mV/A  Accuracy: 0.2%

Working Frequency: 50Hz~400Hz  Clamps Radius: 8mm

Size: 171*46*27mm

C: Range: 100A,  Output Voltage Ratio: 10mV/A Accuracy: 0.2%

Working Frequency: 50Hz~400Hz  Clamps Radius: 13mm

Size: 174*52*27mm

D: Range: 1A~1000A,  Output Voltage Ratio: 1mV/A Accuracy: 1%

Working Frequency: 40Hz~100Hz  Clamps Radius: 52mm

Size: 111*216*45mm

E: Flex type Primary Current Rating: 3000A ,    Output Voltage Ratio: 65mV/1000A

Range: 15A~3000A     Accuracy: 1%+position Error

Maximum Allowable imput: 100KA     Phase Error: Less than 1%

Noise: less than 2mVrms(10Hz~10Khz)  Frequency Characteristic: 10Hz~10KHz(-3db)

Weight: 130g    Length: 200cm    CT perimeter: 50cm  Postion Error: 2%

F: Flex type Primary Current Rating: 5000A ,    Output Voltage Ratio: 50mV/1000A

Range: 20A~1000A     Accuracy: 1%+position Error

Maximum Allowable imput: 100KA     Phase Error: Less than 1%

Noise: less than 2mVrms(10Hz~10Khz)  Frequency Characteristic: 10Hz~10KHz(-3db)

Weight: 130g    Length: 200cm    CT perimeter: 50cm  Postion Error: 2%
