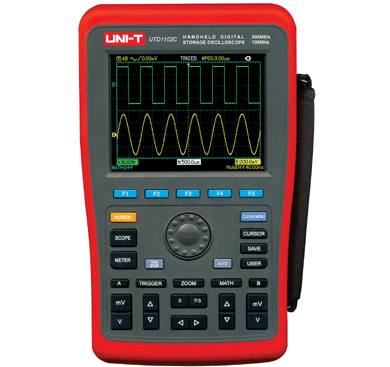

China Handheld Digital Storeage Oscillocope
SPECIFICATIONS
| Feature |
UTD1102C |
| Bandwidth |
100 MHz |
| Rise Time |
≤3.5 ns |
| Real-time Sampling Rate |
500MS/s |
| Equivalent Sampling Range |
25GS/s |
| Vertical Sensitivity |
5mV ~ 50V/div |
| Record Length (Max) |
2 x 512k |
| Scan Time Base |
5ns ~ 50s/div |
| Trigger Type |
Edge, Pulse, Video and Alternate |
| Automatic Waveform Measurements |
27 |
| Frequency Counter |
6 digits frequency counter |
| Ports |
USB Host |
| Mathematics |
Add, Subtract, Multiply, Divide, Reverse and FFT |
| Interface |
Colour and Mono display selectable |
| Power |
The provided battery or out-sourced adaptor |
| Life of Battery |
3 hours |
| Other Features |
Multimeter,special LCD copy feature |
| Multimeter |
| Resistance |
600Ω / 6MΩ / 60MΩ : ± (1.5% + 5 digits)
6kΩ / 60kΩ / 600kΩ : ± (1.2% + 5 digits)
|
| DC Voltage |
600mV, 6V, 60V, 600V, 1000V: ± (1% + 5 digits) |
AC Voltage
(45Hz ~ 400Hz) |
600mV, 6V, 60V, 600V, 700V:
± (1.2% + 5 digits), Frequency: <200Hz
± (1.5% + 5 digits), Frequency: ≥200Hz |
| DC Current |
6mA, 60mA, 600mA: ± (1.2% + 5 digits)
6A: ± (1.5% + 5 digits) |
AC Current
(45Hz ~ 400Hz) |
6mA, 60mA, 600mA: ± (2% + 5 digits)
6A: ± (2.5% + 5 digits) |
| Capacitance |
6nF, 6mF: ± (5% + 10 digits)
60nF, 600nF, 6μF, 60μF, 600μF: ± (4% + 5 digits) |
| Continuity Buzzer |
ok |
| Diode |
ok |
| Trend Diagram |
ok |
| Testing Mode |
Manual / Auto ranging |
| Max.Display |
5999 |
GENERAL CHARACTERISTICS
| Power |
100 - 240V 50/60Hz 1.5A |
| LCD Size |
Diagonal 145mm (5.7 inches) |
| Product Color |
Red and Grey |
| Product Net Weight |
1.8kg |
| Product Size |
268mm x 168mm x 60mm |
| Accessories |
Probe x 2 (1x, 10x switchable),
Current Voltage Convertor x 2(UT-M03, UT-M04)
Power Cord, DC Adaptor and English Manual, Test Lead |
| Standard Individual Packing |
Tool Box and Gift Box |
| Standard Quantity Per Carton |
4 pcs |
| Standard Carton Measurement |
475 x 460 x 380mm (0.10 CBM Per Export Carton) |
| Standard Carton Gross Weight |
Around 23.2kg |
digital storage oscilloscope is a special computer containing a lot of fast A/D converters and software for analyzing and visualizing the signals. You can solve the problem of deploying short-term signals and glitches with DSO. It just relies on the settings and trigger conditions to capture the exact moment. You don’t need to worry too much about the storage capacity, only if you need it to store longer intervals.
