Desktop Digital Oscilloscope Dual Channel
The products is low cost bench oscilloscope with more function which can track fluctuations in two different signals simultanneously. Imput singnals are displayed on the large LCD screen as different waveforms. Customers can change these waveformas according to different purpose by interface. Function in this products includes: scale and position adjustments, trigger menu, zero setting, force, cursor
Features:
-Dual channels
-Large LCD screen
-100Mhz bandwidth with sample rate of 1GS/s
-Edge, pulse and alternate trigger types
-USB interface
SPECIFICATIONS:
Channels: 2
Bandwidth: 100 MHz
Sample Rate: 1GS/s
Rise Time: ≤ 3.5ns
Memory Depth: 25 kpts
Waveform Acquisition Rate: ≥ 2000 wfms/s
Vertical Sensitivity: 1mV ~ 20V/div
Time-Based Range: 2ns/div ~ 50s/div
Storage: Setup, Wave, Bitmap
Trigger Modes: Edge, Pulse, Alternate
Interfaces: USB OTG
GENERAL CHARACTERISTICS:
Power: 100 - 240V AC RMS, 45Hz - 440Hz
Display: 7 Inches 64K Color TFT LCD (800 x 480)
Product Color: White and Grey
Product Net Weight: 2.2 kg
Product Size: 306mm x 147mm x 122mm

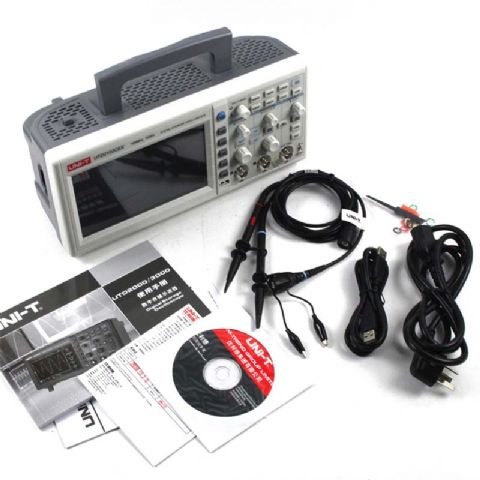

Package:
Digital Oscilloscope Probe x 2 (1x, 10x switchable),
Power Cord,
USB Cable,
PC Software CD
