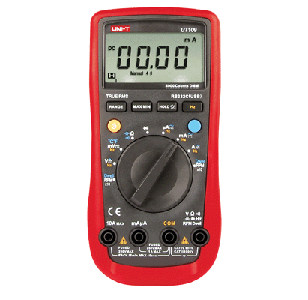

| Product Name: Handheld Auto Ranging Automotive Multimeters UT109 |
| Product Numbers: UT109 |
| Product Specifications: Max. Display 3999 |
| Product Remark: RS232 (USB) |
| Product Class:Measuring and Testing Instruments > Electronic test Instruments > Multimeters |
|
 Product Details SPECIFICATIONS
| Basic Functions |
Range |
Best Accuracy |
| DC Voltage |
4V/40V/400V/1000V |
±(0.5%+ 3) |
| AC Voltage |
40mV/400mV/4V/40V/400V/1000V |
±(0.8%+ 3) |
| DC Current |
400μA/4000μA/40mA/400mA/4A/10A |
±(1%+ 2) |
| AC Current |
400μA/4000μA/40mA/400mA/4A/10A |
±(1.2%+ 5) |
| Resistance |
400W/4kW/40kW/400kW/4MW/40MW |
±(1%+ 5) |
| Capacitance |
10nF/100nF/1000nF/10μF/100μF |
±(3%+ 5) |
| Frequency |
10Hz - 1MHz |
±(0.1%+ 4) |
| Temperature (°C) |
-40°C ~ 537°C |
±(1%+ 10) |
| Special Functions |
|
| Auto Ranging |
|
YES |
| Dwell |
4Cyl / 6Cyl / 8Cyl |
±(3%+ 5) |
| Tach |
4Cyl / 6Cyl / 8Cyl |
±(3%+ 5) |
| Diode |
|
YES |
| Continuity Buzzer |
|
YES |
| Max / Min Mode |
|
YES |
| Data Hold |
|
YES |
| Sleep Mode |
|
YES |
| Display Backlight |
|
YES |
| RS232 (USB) |
|
YES |
| Low Battery Display |
|
YES |
Input Impedance for DC
Voltage Measurement |
≥ 10MW |
YES |
| Max. Display |
3999 |
YES |
GENERAL CHARACTERISTICS
| Power |
9V Battery (6F22) |
| LCD Size |
65 x 43mm |
| Product Colour |
Red and Grey |
| Product Net Weight |
362g |
| Product Size |
180 x 87 x 47mm |
| Standard Accessories |
Test Lead, Battery, English Manual, RS232 Interface Cable, Software,
Multi-Purpose Socket, Point Contact Temperature Probe |
| Optional Accessories* |
USB Interface Cable |
| Standard Individual Packing |
Gift Box |
| Standard Quantity Per Carton |
20pcs |
| Standard Carton Measurement |
465 x 335 x 345mm
(0.054 CBM Per Export Carton) |
| Standard Carton Gross Weight |
15kg |
|
|
