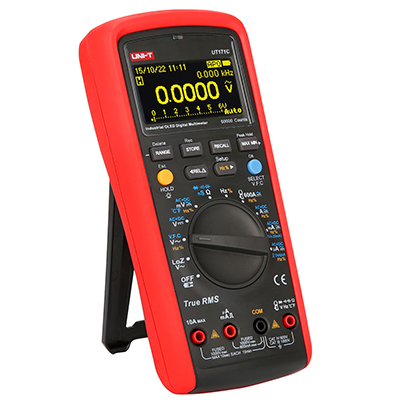

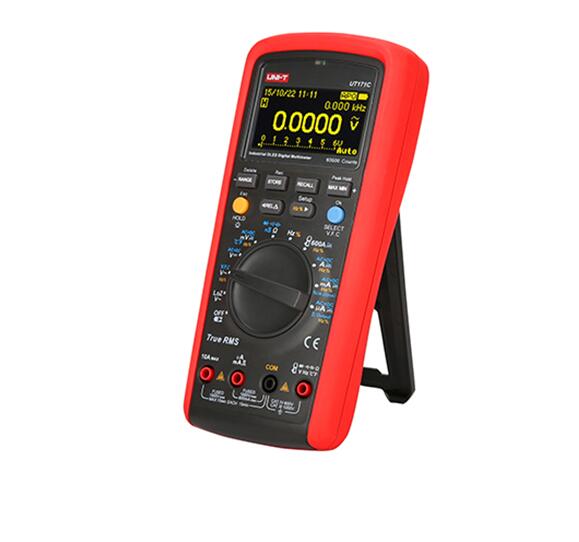

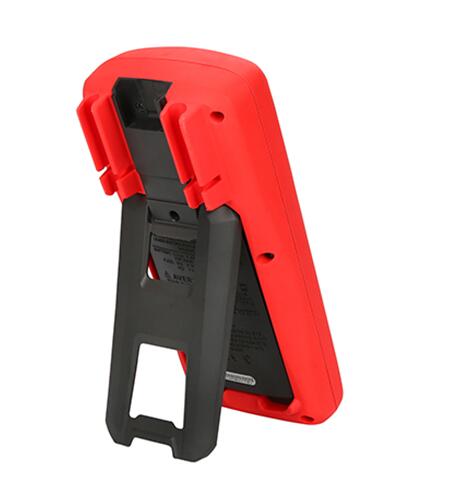

As it lives to is name, the UT171 can measure frequence, Temperature Voltage, Current, Resistance, Admittance,



Specification:

Specifications	Range	Best Accuracy
Model		UT171C
DC Voltage (V)	600mV/6V/60V/600V/1000V	±(0.025%＋5)
AC Voltage (V)	600mV/6V/60V/600V/750V	±(0.4%＋40)
DC Current (A)	600uA/6000uA/60mA/600mA/6A/10A	±(0.15%＋2)
AC Current  (A)	600uA/6000uA/60mA/600mA/6A/10A	±(0.75%＋5)
Resistance (Ω)	600Ω/6KΩ/60KΩ/600KΩ/6MΩ/60MΩ	±(0.05%＋2)
Admittance (nS)	60nS	±(1.0%＋10)
Capacitance(F)	6nF/60nF/600nF/6μF/60μF/600μF/6mF/60mF	±(2.5%+40)
Frequence (Hz)	10Hz~10MHz	±(0.01%+5)
Temperature (℃)	-40℃~1000℃	±(1.0%+30)
Temperature (℉)	-40℉~1832℉	±(1.5％+50)
Features
Display Count		60000
Auto/Manual Range		√
True RMS		√
Bandwidth (Hz)	100KHz	√
AC + DC		√
V.F.C		√
4~20mA Loop	0~100%	√
LoZ(ACV)	Around 3KΩ	√
Diode	Around 3.0V	√
Continuity Buzzer		√
Duty Cycle	1%~99%	√
Square Wave Output		√
NCV		√
Data Hold/MAX/MIN		√
Relative Mode		√
Peak Hold		√
Data Storage		9999
Date Time Display		√
Data Comparsion Function		√
USB Interface		√
Display Type		OLED
LCD Backlight		√
Analogue Bar Graph		√
Mis-plug Alarm		√
Low Battery Indication		√
Rechargeable Battery		√
Auto Power Off	Around 15 Minutes	√
Input Protection		√
Input Impedance for DCV	Around 1GΩ	√





Power 7.4V  2000mAh  Li-ion Battery
LCD Size 70.6mm x 35.3 mm
Product Color Red and Grey
Product Net Weight 384g
Product Size 206mm x 95mm x 55mm
Standard Accessories Batteries, Test lead, Point Contact Temperature Probe, USB Interface Cable, Power Adaptor(For UT171B/C),PC Software CD
Standard Individual Packing Gift Box, Carrying Bag, English Manual
