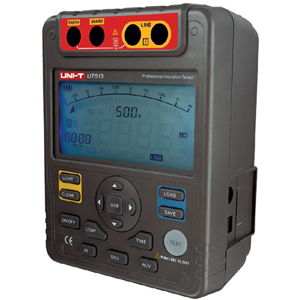

UT513 insulation resistance tester is a handheld instrument designed primarily to make resistance/ insulation resistance measurement.

SPECIFICATIONS

Basic Functions	Range	Best Accuracy
Insulation Resistance	500kW ~ 10GW 1MW*~1000GW	±(5%+5)
Low Resistance	1000W	±(1%+3)
Testing Voltage	100V/250V/500V/1000V 1000V/1500V/2500V/5000V	0~20%
DC Voltage	1000V	±(1%+3)
AC Voltage	750V	±(1.5%+3)
Special Functions
Auto Ranging		YES
Short Circuit Current		<1.3mA
Data Logging		18
Data Recall		YES
Sleep Mode		YES
Polarization index (PI)		YES
Dielectric Absorption(DAR)		YES
Timer	Within 30 minutes	YES
Compare		YES
Battery Display		YES
Display Backlight	EL	YES
Over Range and High Voltage Warning		YES
USB		YES
Max. Display Analogue Bar Graph	9999	YES YES

GENERAL CHARACTERISTICS

Power	UT511-1.5V Battery (R14) x 8 UT513 -1.5V Alkaline Battery (LR14) x 8
LCD Size	123 mm x 58 mm
Product Color	Grey
Product Net Weight	2kg
Product Size	202 x 155 x 94 mm
Standard Accessories	UT511 - A pair of one plug test lead to one alligator clip, A pair of two plugs test lead to one alligator clip, Batteries, English Manual, Tool Box. UT513 - A pair of one plug test lead to one alligator clip, A pair of two plugs test lead to one alligator clip, Batteries, English Manual, Tool Box, USB Interfac
Optional Accessories*	Power Adapter
Standard Individual Packing	Gift Box
Standard Quantity Per Carton	5 pcs
Standard Carton Measurement	600 x 350 x 320 mm (0.067 CBM Per Standard
Standard Carton Gross Weight	Around 13kg
