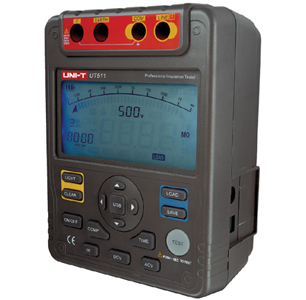

Insulation Resistance Testers UT511
Zoom Browse
Product Name: Insulation Resistance Testers UT511
Product Numbers: UT511
Product Specifications: Insulation Resistance :500kW ~ 10GW
Product Remark: China insulation resistance manufacturer
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Insulation Testers
Product Details
【DateTime:2011-07-19 Browse:】【Font: Big Mid Small】【Print】【Close
Model UT511 insulation resistance tester is a handheld instrument designed primarily to make resistance/ insulation resistance measurement
SPECIFICATIONS
Basic Functions Range Best Accuracy
Insulation Resistance 500kW ~ 10GW

1M
W*~1000GW
±(3%+5)
Low Resistance 1000W ±(1%+3)
Testing Voltage 100V/250V/500V/1000V

1000V/1500V/2500V/5000V
0~20%
DC Voltage 1000V ±(1%+3)
AC Voltage 750V ±(1.5%+3)
Special Functions
Auto Ranging   YES
Short Circuit Current   <2mA
Data Logging   18
Data Recall   YES
Sleep Mode   YES
Polarization index (PI)   YES
Dielectric Absorption(DAR)   YES
Timer Within 30 minutes YES
Compare   YES
Battery Display   YES
Display Backlight EL  YES

Over Range and High

Voltage Warning

  YES
USB
Max. Display

Analogue Bar Graph
9999

YES

YES

GENERAL CHARACTERISTICS
Power UT511-1.5V Battery (R14) x 8
LCD Size 123 mm x 58 mm
Product Color Grey
Product Net Weight 2kg
Product Size 202 x 155 x 94 mm
Standard Accessories UT511 - A pair of one plug test lead to one alligator clip,
A pair of two plugs test lead to one alligator clip, Batteries,
English Manual, Tool Box.
Optional Accessories* Power Adapter
Standard Individual Packing Gift Box
Standard Quantity Per Carton 5 pcs
Standard Carton Measurement 600 x 350 x 320 mm (0.067 CBM Per Standard
Standard Carton Gross Weight Around 13kg
