UT513A Insulation Resistance Tester
Zoom Browse
Product Name: UT513A Insulation Resistance Tester
Product Numbers: UT513A
Product Specifications: 500V, 1000V, 2500V and 5000V
Product Unit: Data Logging: 18
Product Remark: Analogue bar graph
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Insulation Testers
Product Details
【DateTime:2018-11-12 Browse:】【Font: Big Mid Small】【Print】【Close
UT513A Insulation Resistance Tester
Features:
-Strong frame for hold the instruments
-Wider Test Voltages 500V, 1000V, 2500V and 5000V
-Automatically choose the applicable range
-Backlit LCD dsiplay
-Autaomatically power off
-DC/AC voltage measurements to 600V
-Auto Range insulation resistance
-Analogue bar graph
-Overrange Indicator
-Dielectric Absorption (DAR)
-Polarisation Index (PI)
-Data Logging: 18
-USB Interface
-Timer: Around 15 minutes
Specification:
est Voltages 500V, 1000V, 2500V, 5000V
Test Voltage Accuracy 0% to 20%
500V Range (Accuracy) 1MΩ to 20GΩ (±3%+5)
1000V Range (Accuracy) 2MΩ to 40GΩ (±3%+5)
2500V Range (Accuracy) 5MΩ to 100GΩ (±3%+5)
5000V Range (Accuracy) 10MΩ to 1000GΩ (±3%+5)
Short Circuit Current >3.5mA
DC Voltage 600V
AC Voltage 600V
Low Resistance 0.1Ω to 999.9Ω
Power 1.5V alkaline batteries (LR14) x 8
LCD Size 123mm x 58mm

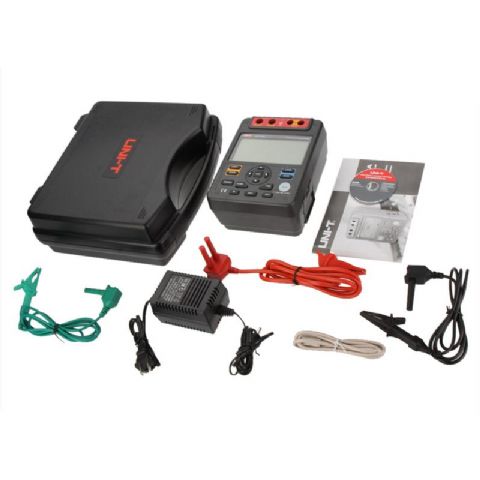

Package:
1 * UT513A Insulation Resistance Tester
2 * One plug test lead to one alligator clip(Black and Green)
1 * Two plugs test lead to one alligator clip(Red)
1 * Power Adaptor
1 * USB Cable
1 * Tool Box
1 * PC Software CD
1 * Manual
Note: The package is NOT included any battery
