Insulation Resistance Tester Megohmmeter UT501A Data Hold
Features:
-Test voltages of 100V, 250V, 500V and 1000V
-Wide range:
100V: 0.00MΩ~100MΩ ±(3%+5)
250V: 0.00MΩ~99.9MΩ ±(3%+5) ; 100MΩ~5.5GΩ ±(5%+5)
500V: 0.00MΩ~99.9MΩ ±(3%+5) ; 100MΩ~5.5GΩ ±(5%+5)
1000V: 0.00MΩ~99.9MΩ ±(3%+5) ; 100MΩ~5.5GΩ ±(5%+5)
-Ports for test leads
-Data hold
-Large LCD display
-Low Cost
-Buzzer
-High voltage indication
-Overload indication
-Over discharge
Specification:
| Specifications |
Range |
Best Accuracy |
| Model |
|
UT501A |
| Insulation Resistance (Ω) |
Test Voltage |
100V/250V/500V/1000V |
0%~10% |
| 100V |
0.00MΩ~100MΩ |
±(3%+5) |
| 250V |
0.00MΩ~99.9MΩ |
±(3%+5) |
| 100MΩ~5.0GΩ |
±(5%+5) |
| 500V |
0.00MΩ~99.9MΩ |
±(3%+5) |
| 100MΩ~5.0GΩ |
±(5%+5) |
| 1000V |
0.00MΩ~99.9MΩ |
±(3%+5) |
| 100MΩ~5.0GΩ |
±(5%+5) |
| Load Current |
50V (R=50kΩ) 1mA |
0%~10% |
| 100V (R=100kΩ) 1mA |
0%~10% |
| 250V (R=250kΩ) 1mA |
0%~10% |
| 500V (R=500kΩ) 1mA |
0%~10% |
| 1000V (R=1MΩ) 1mA |
0%~10% |
| Short Circuit Current |
|
<2mA |
| AC Voltage (V) |
30V~750V |
±(2%+3) |
| Features |
| Display Count |
|
2000 |
| Auto Range |
|
√ |
| Low Battery Indication |
|
√ |
| LCD Backlight |
|
√ |
| Alarm Light Display |
|
√ |
| Alarm Buzzer |
|
√ |
|
HighVoltage Indication
|
|
√ |
| Over Load Indication |
|
√ |
| Auto Disharge |
|
√ |
| Test Voltage Vice Display |
|
√ |
| 10MΩ Internal Resistance Test |
|
√ |

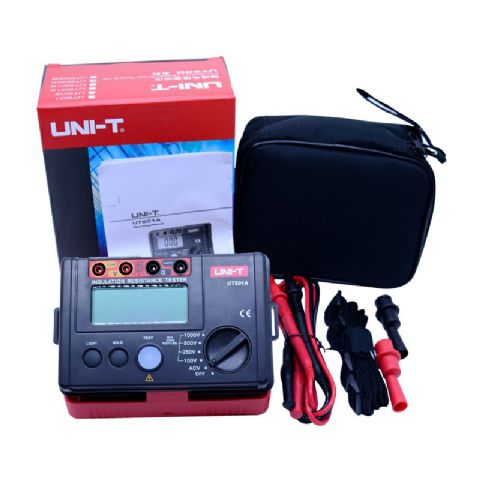

Package List:
1 * UT501A Insulation Resistance Meter
1 * Pair Test Lead
1 * Pair Alligator Clips
1 * English Manual
Note: The battery will be removed for shipping safety
