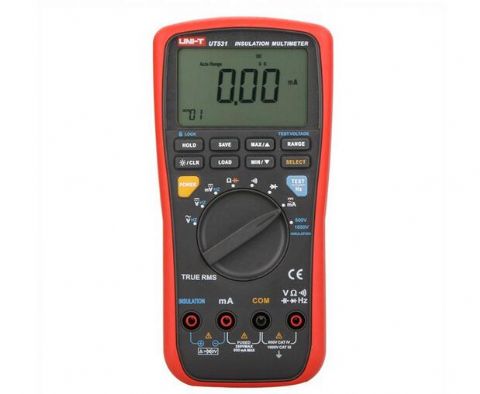

UT531 Insulation Resistance Multimeter
Specifiction:
|
Specifications
|
Range
|
Best Accuracy
|
|
Model
|
|
UT531
|
|
Insulation Resistance(Ω)
|
Test Voltage
|
500V/1000V
|
0%~10%
|
|
500V
|
0.5MΩ~99.9MΩ
|
±(3%+5)
|
|
100MΩ~500MΩ
|
±(3%+5)
|
|
1000V
|
4.0MΩ~99.9MΩ
|
±(3%+5)
|
|
100MΩ~600MΩ
|
±(3%+5)
|
|
Short-Circuit Current
|
<2mA
|
√
|
|
Multimeter Specifications
|
|
DC Voltage (V)
|
60mV/600mV/6V/60V/600V/1000V
|
±(0.09%+6)
|
|
AC Voltage(50Hz~1KHz)
|
6V/60V/600V/1000V
|
±(1%+3)
|
|
DC Current (A)
|
60mA/600mA
|
±(1.0%+2)
|
|
AC Current(50Hz~1KHz)
|
60mA/600mA
|
±(1.5%+2)
|
|
Resistance (Ω)
|
600Ω/6KΩ/60KΩ/600KΩ/6MΩ/40MΩ
|
±(0.9%+2)
|
|
Capacitance (F)
|
10nF/100nF/1μF/10μF/100μF
|
±(3%+5)
|
|
Frequency (Hz)
|
60Hz/600Hz/6KHz/60KHz/600KHz/1MHz
|
±(0.1%+3)
|
|
Features
|
|
Display Count
|
|
6000
|
|
Auto Range
|
|
√
|
|
True RMS
|
|
√
|
|
Diode
|
|
√
|
|
Auto Power Off
|
|
√
|
|
Continuity Buzzer
|
|
√
|
|
Low Battery Indication
|
|
√
|
|
Data Hold
|
|
√
|
|
MAX/MIN
|
|
√
|
|
Data Logging
|
|
99
|
|
LCD Backlight
|
|
√
|
|
Full Icon Display
|
|
√
|
|
General Characteristic
|
|
Power
|
1.5V Alkaline Batteries(LR6)x6
|
|
LCD Size
|
81mm X 46mm
|
|
Product Color
|
Red and Grey
|
|
Product Net Weight
|
505g
|
|
Product Size
|
96.7mm X 202.8mm X46 mm
|
Whats in the package:
Multimeter
Manual
Test Lead
Alligator Clip
