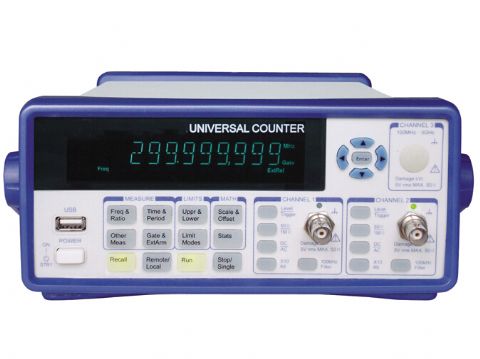

8 Digits Universal Frequency Counter/Timer
Features
-
High accuracy with minimum measuring resolution 10 digits/s
-
Single resolution can reach 500ps for measurement
-
200MHz frequency measuring for CH1 and CH2
-
Maximum frequency’s measurement can reach to 16GHz (options)
-
16-bit microcontroller is used and the speed of data processing is fast.
-
With the statistics functions of multi-average, maximum, minimum, PPM, standard deviation and Allan Variance for frequency measurement
-
High-stability crystal oscillator is optiona
Specifications
| |
FUGE-7200A
|
FUGE-7300
|
|
Resolution
|
8 digits /s
|
10 digits/s
|
|
Frequency
|
CH1
|
0.001Hz ~ 200 MHz
|
|
CH2
|
0.001Hz ~ 200 MHz
|
|
CH3
|
Optional: 3GHz;6.5GHz;12.4GHz; 16GHz
|
|
Period
|
CH1
|
5ns ~10000s
|
5ns ~1000s
|
|
CH2
|
|
Dynamic Range
|
50mVrms~1.0Vrms (Sine); 150mVP-P~4.5VP-P (Pulse)
|
|
Pulse Width
|
30ns~5000s
|
|
Duty Cycle
|
1~99%
|
|
Totalize
|
0~1 ×1013
|
|
Phase Difference
|
0°~+360°
|
|
Time Interval
|
10ns~10000s
|
|
Input Coupling
|
AC or DC
|
|
Input Impedance
|
50Ω or 1MΩ
|
|
Interface
|
Standard
|
USB
|
USB, RS-232
|
|
|
Option
|
RS-232, GPIB
|
GPIB
|
|
General characteristics
|
|
Power conditions
|
AC220V(1±10%), 50Hz(1±5%), <35VA
|
|
Dimensions & Weight
|
375×105×235mm, Approx. 3.7kg
|
| |
|
|
|
|
OXCO
|
Standard
|
Optional
|
|
Nominal Frequency
|
10MHz
|
10MHz
|
|
Accuracy
|
5×10-8
|
5×10-8
|
|
Daily Aging
|
1×10-8/day
|
5×10-10/day
|
| |
|
|
|
|
Option
|
Frequency Range
|
Dynamic Range
|
|
3GHz
|
100MHz~3GHz
|
-27dBm~+19dBm Sine (Frequency: 100MHz~2.6GHz) -15dBm~+19dBm Sine (Frequency: 2.6GHz~3GHz)
|
|
6.5GHz
|
200MHz ~6.5GHz
|
200MHz~400MHz -15dBm~+13dBm
400MHz~6.5GHz -20dBm ~+13dBm
|
|
12.4GHz
|
6.5GHz ~ 12.4GHz
|
-18dBm~+10dBm
|
|
16GHz
|
6.5GHz ~ 16GHz
|
6.5GHz~12.4GHz -18dBm ~ +10dBm
12.4GHz~16GHz -15dBm ~ +10dBm
|
