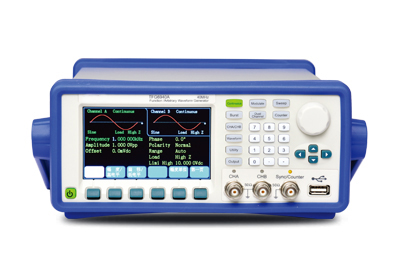

DDS Function/Arbitrary Waveform Generator With120 MSa/s Sample Rate
Zoom Browse
Product Name: DDS Function/Arbitrary Waveform Generator With120 MSa/s Sample Rate
Product Numbers: FUGE-8601
Product Specifications: 1μHz ~ 40MHz
Product Unit: 120 MSa/s sample rate
Product Remark: 14 bits vertical resolution
Product Class:Measuring and Testing Instruments > Electronic test Instruments > DDS Function Generators
Product Details
【DateTime:2014-10-18 Browse:】【Font: Big Mid Small】【Print】【Close
DDS Function/Arbitrary Waveform Generator With120 MSa/s Sample
Part No: FUGE-8601

Features
● Dual channel output, 120 MSa/s sample rate and 14 bits vertical resolution
● 5 standard waveforms, 50 built-in arbitrary waveforms and 5 user-defined arbitrary waveforms
● Abundant modulation function: FM, AM, PM, PWM, Sum, FSK and BPSK, also sweep and burst
● Channel coupling and combine features on CHB
● Build in 350MHz frequency counter
● Standard interface: USB Host, USB Device and RS-232, and support U-disc storage
Specifications


Continuous Output (CHA&CHB)



FUGE-8601

FUGE-8602

FUGE-8603

FUGE-8604

Frequency

Range

Sine

1μHz ~ 10MHz

1μHz ~ 20MHz

1μHz ~ 30MHz

1μHz ~ 40MHz

Square, Pulse

1μHz ~ 10MHz

Other

1μHz ~ 5 MHz

Resolution

1μHz

Accuracy

±(50ppm+1μHz)

Waveform

Type

5 standard waveforms : Sine, Square, Ramp, Pulse, Noise

50 built-in arbitrary waveforms: PRBS (Pseudorandom Binary Sequence), Exponential Fall, Exponential Rise, Logarithm, Sinc, Gaussian, Cardiac, Tangent, Semi-Circle, Quake, etc.

5 user-defined arbitrary waveforms

Sine (Spectral Purity)

Harmonic distortion (0dBm)

≤-60dBc  Frequency<5MHz

≤-50dBc  Frequency≥5MHz

Total Distortion

≤0.1  (20Hz to 20kHz, 20Vpp)

Square

Pulse

Ramp

Edge time of Square and Pulse (1Vpp)

≤20ns

Overshoot  (Typical Value)

≤ 10

Duty Cycle of Square

0.1% to 99.9%

Pulse Width

50ns to 2000s

Symmetry of Ramp

0.0% to 100.0%

Arb.

Length

4096 points

Sample Rate

120 MSa/s

Amplitude Resolution

14 bits (CHA); 10bits (CHB)

Filter Bandwidth

50MHz

Non-Volatile Memory

5 waveforms

Amplitude

Range

0.1mVpp to 10Vpp (50Ω)  0.2mVpp to 20Vpp (High Z)  Frequency≤20MHz

0.1mVpp to 7.5Vpp (50Ω)  0.2mVpp to 15Vpp (High Z)  Frequency>20MHz

Resolution

1mVpp (Amplitude≥1Vpp, 50Ω)    0.1mVpp(Amplitude<1Vpp, 50Ω)

2mVpp (Amplitude≥2Vpp, High Z)  0.2mVpp(Amplitude<2Vpp, High Z)

Accuracy

(1kHz Sine)

±(1 of setting1mVpp)

Flatness

(relative to 100 kHz Sine)

±0.2dBm  frequency<5MHz

±0.3dBm  frequency<20MHz

±0.5dBm  frequency≥20MHz

DC Offset

Range

±5V (50Ω), ±10V (High Z)

Accuracy

±(1of setting+1mV)

Modulation Characteristics (CHA)

FM,AM, PM,PWM, Sum

Carrier Waveform

Sine, Square, Ramp, etc. (Only Pulse for PWM

Modulation Waveform

Sine, Square, Ramp, etc.

Source

Internal / External

FSK, BPSK

Carrier Waveform

Sine, Square, Ramp, etc.

Hop Rate

1μHz ~ 100kHz

Source

Internal / External

Sweep Characteristics (CHA)

Carrier Waveforms

Sine, Square, Ramp, etc.

Type

Linear or Logarithmic

Sweep Range

Any frequency within the waveform’s range

Sweep Time

5ms~500s

Trigger Source

Internal, External and Manual

List Sweep

List length: 600

Burst Output (CHA)

Waveforms

Sine, Square, Ramp, etc.

Types

Count, Gated

Repeat Period

1μs ~ 500s

Start/Stop Phase

0°~ 360°

Gate Source

External Trigger

Trigger Source

Internal, External , Manual

Two-Channels Characteristics (CHB)

Frequency Coupling

Frequency ratio, frequency difference

Amplitude & DC offset Coupling

Amplitude difference, offset difference

Combine Output

Combine Amplitude: 0~100

SYNC Output

Waveform

Square, edge time ≤ 10ns

Output Level

5V (High Z)   2.5V (50Ω)

Modulation and Trigger Input

Modulation Input Voltage

±5Vpp (full scale)

Trigger Input Level

TTL

Input Impedance

10kΩ

Frequency Counter

Frequency Range

0.1Hz~350MHz, resolution: 6 digits/s

Measurement of Period and Pulse-width

100ns ~ 20s

Duty Cycle

1% ~ 99%

Trigger Level

-3V ~ 3V

Coupling mode

AC, DC

Power Amplifier (Option)

Input signal

Voltage: 0Vrms ~ 5Vrms  Frequency: 1Hz ~ 200kHz

Voltage Amplifier

double

Output Power

8W (load 8Ω)  2W(load 50Ω)  Frequency≤100kHz

3W(load 8Ω)  1W(load 50Ω)  Frequency≤200kHz

General Characteristics

Power

AC 100 ~ 240V, 45 ~ 65Hz, < 30VA

Environment Condition

Temperature: 0 ~ 40   Humidity: <80%RH

Dimension & Weight

256×102×322 mm, Approx.3 kg



Modulation Waveform

Sine, Square, Ramp, etc.

Source

Internal / External

FSK, BPSK

Carrier Waveform

Sine, Square, Ramp, etc.

Hop Rate

1μHz ~ 100kHz

Source

Internal / External

Sweep Characteristics (CHA)

Carrier Waveforms

Sine, Square, Ramp, etc.

Type

Linear or Logarithmic

Sweep Range

Any frequency within the waveform’s range

Sweep Time

5ms~500s

Trigger Source

Internal, External and Manual

List Sweep

List length: 600

Burst Output (CHA)

Waveforms

Sine, Square, Ramp, etc.

Types

Count, Gated

Repeat Period

1μs ~ 500s

Start/Stop Phase

0°~ 360°

Gate Source

External Trigger

Trigger Source

Internal, External , Manual

Two-Channels Characteristics (CHB)

Frequency Coupling

Frequency ratio, frequency difference

Amplitude & DC offset Coupling

Amplitude difference, offset difference

Combine Output

Combine Amplitude: 0~100

SYNC Output

Waveform

Square, edge time ≤ 10ns

Output Level

5V (High Z)   2.5V (50Ω)

Modulation and Trigger Input

Modulation Input Voltage

±5Vpp (full scale)

Trigger Input Level

TTL

Input Impedance

10kΩ

Frequency Counter

Frequency Range

0.1Hz~350MHz, resolution: 6 digits/s

Measurement of Period and Pulse-width

100ns ~ 20s

Duty Cycle

1% ~ 99%

Trigger Level

-3V ~ 3V

Coupling mode

AC, DC

Power Amplifier (Option)

Input signal

Voltage: 0Vrms ~ 5Vrms  Frequency: 1Hz ~ 200kHz

Voltage Amplifier

double

Output Power

8W (load 8Ω)  2W(load 50Ω)  Frequency≤100kHz

3W(load 8Ω)  1W(load 50Ω)  Frequency≤200kHz

General Characteristics

Power

AC 100 ~ 240V, 45 ~ 65Hz, < 30VA

Environment Condition

Temperature: 0 ~ 40   Humidity: <80%RH

Dimension & Weight

256×102×322 mm, Approx.3 kg



Package:

Power cord  1
BNC testing cable  1
CD ( Software + Users Manual)  1
