Arbitrary Waveform/Function Generator
Zoom Browse

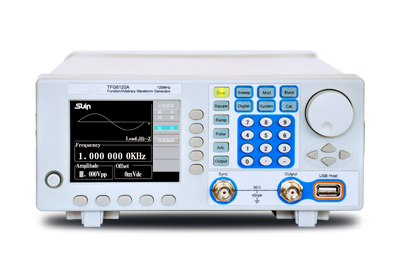

Product Name: Arbitrary Waveform/Function Generator
Product Numbers: FUGE-8201
Product Specifications: Range: 1μHz ~120MHz
Product Unit: Resolution 1μHz
Product Remark: Sine, Square, Ramp, Pulse, DC, Exponent, Sinc, Noise
Product Class:Measuring and Testing Instruments > Electronic test Instruments > DDS Function Generators
Product Details
【DateTime:2014-10-18 Browse:】【Font: Big Mid Small】【Print】【Close
Function/Arbitrary Waveform Generator

Range
FUGE-8201 : 1μHz ~80MHz
FUGE-8202 : 1μHz ~120MHz
Sine
Others
Square: 1μHz ~ 50 MHz        Pulse:  1μHz ~ 25 MHz
Ramp:   1μHz ~10MHz           Arb:     1μHz ~25 MHz
Resolution  1μHz
Waveform      Standard      Sine, Square, Ramp, Pulse, DC, Exponent, Sinc, Noise, etc.
                      Arbitrary       Waveform Length: 3~ 512k points
                                          Amplitude Resolution: 14 bits (including sign)
                                          Sample Rate: 300 MSa/s
                                          Non-Volatile Memory: 60M Bytes
                                          Square Duty Cycle: 20% ~80% (25MHz)    40% ~60% (50MHz)
                     Ramp
                                         Symmetry: 0.0 %~ 100.0 %
                                         Linearity: ≤ 0.1 %of peak value(Typical,1kHz, 1Vpp, Symmetry 100%)
                    Pulse            Width: 8 ns ~1000000s
                                          Edge Time: 5 ns ~ 2 ms
Output
                  Amplitude       0 ~10Vpp(50Ω)    0 ~20Vpp (high-impedance)
                  Offset             ± 5 V (50Ω)        ± 10 V ( high-impedance)

Modulation
(Internal/External)     FM, AM, PM, PWM       Carrier Waveform: Sine, Square, Ramp, Arb, etc. (Only Pulse for PWM)
                                                                   Modulation Waveform: Sine, Square, Triangle, Ramp
                                                                   Modulation Frequency: 2mHz ~ 20 kHz

                              FSK                              Carrier Waveform: Sine, Square, Ramp, Arb, etc.
                                                                   Modulation Waveform: Square (Duty Cycle 50 %)
                                                                   Modulation Frequency: 2mHz ~ 100 kHz
Ext.Modulation Input(FM,AM,PM,PWM)         Input Impedance:10 kΩ
                                                                   Signal Frequency: DC to 20 kHz

Burst                   Waveforms                        Sine, Square, Ramp, Pulse, Arb
                           Burst Count                      1~1000000
                          Trigger Source                    Internal, Manual, External, Gate

Sweep                 Frequency/Amplitude         Carrier Waveform: Sine, Square, Ramp, Arb
                                                                   Frequency Range: 1μHz ~ 120 MHz
                                                                   Sweep Type: Linear or Logarithmic
                                                                  Amplitude Range: 0Vpp ~20Vpp (Range: Hold)
                                                                  Sweep Type:  Linear
Dimension and Size:  221×100×338 mm,    Approx. 2.9kg
