PC USB Function/Arbitrary Waveform Generator
Zoom Browse
Product Name: PC USB Function/Arbitrary Waveform Generator
Product Numbers: FUGE-3X25
Product Specifications: DAC clock: 2K~200MHz adjustable
Product Unit: Channels: 1CH
Product Remark: Waveform Length: 4KSa
Product Class:Measuring and Testing Instruments > Electronic test Instruments > DDS Function Generators
Product Details
【DateTime:2015-05-06 Browse:】【Font: Big Mid Small】【Print】【Close

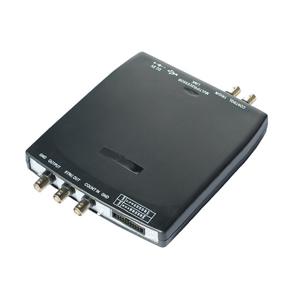

PC USB Function/Arbitrary Waveform Generator
Features:
    •Cost effective, PC USB Function/Arbitrary Waveform Generator.
    •It can be used to disengage computer. Simulation of sensors and real word signals.
    •It can be used as the other products signal generator module, no need computer. It will produce the needed arbitrary  waveform signal when power on.
    •200 MSa/s of sample rate, 12 bits of vertical resolution.
    •25Mz Arbitrary waveform output (sine wave up to 75 Mz).
    •One computer can be linked with several DDS-3X25 to expand multi-channels.
    •50 MHz frequency counter.
    •12bits pattern generator.
    •USB interface, plug and play, no need external power supply, compact and portable.
    •Operating system: Windows NT, Windows 2000, Windows XP, Windows Vista, Windows 7.
    •Second Design support: Labview\VB\VC\Delphi\C++Build. Provide second design examples.

Specifications:
Arbitrary waveform ouput
Wave frequency DC~25MHz
DAC clock 2K~200MHz adjustable
Channels 1CH waveform output
Waveform Length 4KSa
Vertical Resolution 12 bit
Frequency stabilization <30ppm
Amplitude ±3.5V Max.
Output impedance 50 Ω
Output  current 50mA Ipeak=50mA
System Bandwidth 25M
Wave distortion -50dBc(1KHz),  -40dBc(10KHz)
Frequency Counter
Frequency area DC~50MHz
Input Amplitude   400mVpp~18Vpp
Coupling DC
 frequency precision ±time base error ±1 count
input impedance > 100KΩ
Pattern Generator
Digit 12 bits pattern generator and  6bit digital in
Type LVCMOS
Working Environment
temperature 0~70 centigrade
humidity 0~95%
Weight 0.3Kg

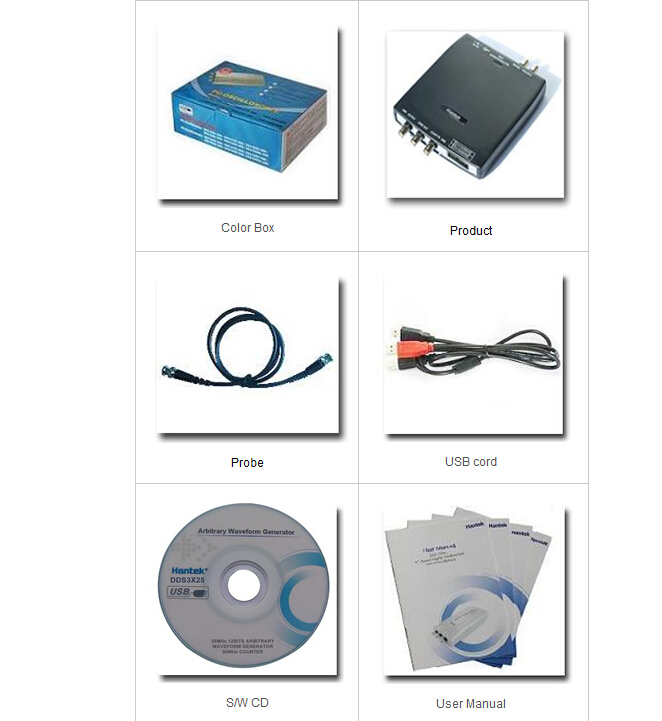

Package
