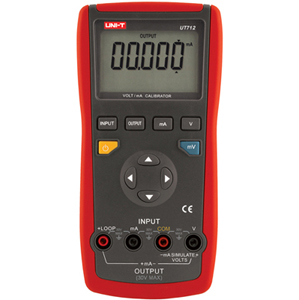

The  UT712 Volt/mA Calibrator is a source and measurement tool for 0 to 20mA current loop testing and DC Voltage from 0 to 20V.  The calibrator does not
source and measure simultaneously. Your calibrator has a unique design and large LCD can read the data clearly.

SPECIFICATIONS

Basic Functions	Range	Best Accuracy
Measure / Source Voltage	200mV / 20V	±(0.04%+2)
Measure / Source Current	20mA	±(0.04%+2)
Special Functions
Sinking Current	-20mA	±(0.04%+2)
Loop Current	20mA	±(0.04%+2)
Loop Power	24V	±10%
Temperature coefficient	0oC~18oC / 28oC~50oC	±0.005%Range/oC
Low Battery Display		YES
Input Impedance for DC Voltage	1MW	YES

GENERAL CHARACTERISTICS

Power	9V Battery (6F22)
LCD Size	40 x 63mm
Product Color	Red and Grey
Product Net Weight	410g
Product Size	96 x 193 x 47mm
Standard Accessories	Test Lead, Battery, English Manual, Carrying Bag
Standard Individual Packing	Gift Box
Standard Quantity Per Carton	24pcs
Standard Carton Measurement	610 x 450 x 355mm (0.097 CBM Per Standard Carton)
Standard Carton Gross Weight	19kg
