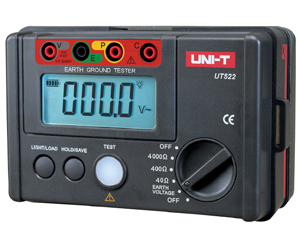

Earth Ground Testers UT522
Zoom Browse
Product Name: Earth Ground Testers UT522
Product Numbers: UT522
Product Specifications: Earth Voltage Testing 0~400Vac(50/60Hz)
Product Remark: LCD Size 70.6 mm x 34 mm
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Earth Ground Testers
Product Details
【DateTime:2011-07-19 Browse:】【Font: Big Mid Small】【Print】【Close
 Earth Ground Testers UT522
Earth Voltage Testing 0~400Vac(50/60Hz)
SPECIFICATIONS
Basic Functions Range Best Accuracy
Earth Resistance Testing 0 ~ 40W
0 ~ 400
W
0 ~ 4000W

±2%rdg±0.2W
±2%rdg±3dgt
±2%rdg±3dgt
Earth Voltage Testing 0~400Vac(50/60Hz) ±1%rdg±6dgt
Special Functions
Data Hold   YES
Backlight Display   YES
Data Logging 20 YES
Battery Check   YES
Sleep Mode Around 10 Minutes YES
Full Icon Display   YES
Over-range Display Display "OL" YES
Contact Badness Display C Port or E Port dont contact Display"- - - - W" YES
Simple 2-Wires Testing   YES
Precision 3-Wires Testing   YES
Double Insulation Protection   YES
GENERAL CHARACTERISTICS
Power 1.5V Alkaline Battery(AA) x 6
LCD Size 70.6 mm x 34 mm
Product Color Grey
Product Net Weight 560g
Product Size 160 x 100 x 70.5 mm
Standard Accessories Battery, Three Test Lead (Green + Yellow + Red), English Manual, Simple Test Lead, Carrying Bag, Test Probe 2 pcs
Standard Individual Packing Gift Box
Standard Quantity Per Carton 4 pcs
Standard Carton Measurement 615 x 530 x 190 mm (0.062 CBM Per Standard Carton)
Standard Carton Gross Weight 15kg
