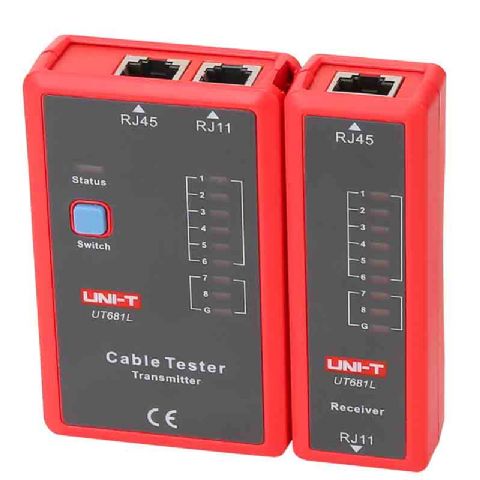

RJ45 RJ11 Ethernet Cable Tester
Compared with UT681C, UT681L cannot test BNC and HDMI/MINI-HDMI (while UT681HDMI can test), It also has fast test and low test model
Specification:
| Function |
Model |
Description |
| UT681L |
| Test function |
To test for: RJ45/RJ11 |
√ |
|
| Fast test mode |
√ |
LED1~LED8, LED_G |
| Low test mode |
√ |
LED1~LED8, LED_G |
|
To test for the case of short
circuit, crossover, open circuit, etc.
|
√ |
|
| Ethernet cable: shielded/ unshielded test |
√ |
|
| Manual shutdown function |
√ |
|
| Auto shutdown function |
√ |
No operation within 10 minutes, the device will shut down automatically |
| Single key operation |
√ |
|
| Power supply: 9V battery |
√ |
|
| Low voltage detection |
√ |
About less than 7.2V |
| Application environment |
Working temperature: 0~40℃ |
√ |
|
| Storage temperature: -10~50℃ |
√ |
|
| Working humidity: 20~80% RH |
√ |
|
| Storage humidity: 10~90% RH |
√ |
|
| Altitude: ≤2000 meters |
√ |
|
|
Safety
standard
|
CE EN61326-1: 2013; EN61326-2-2: 2013 |
√ |
|
