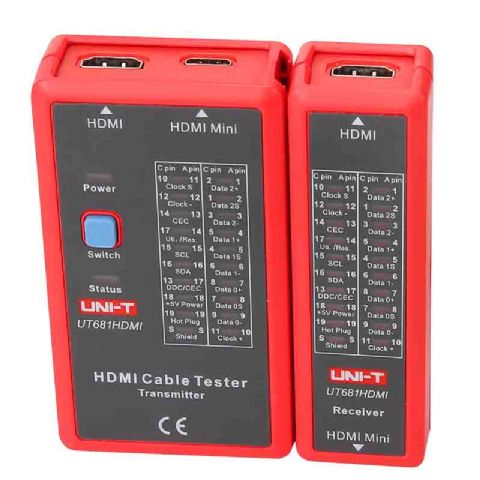

Ethernet HDMI Cable Tester
The tester can measure the HDMI/MINI-HDMI
Features:
1. LED status display
2. Auto check of open/short/crossover circuit
3. Scan/full display testing modes conversion
4. Single key operation
5. Manual/auto power off (after 10-minute inactivity)
6. Low battery indication
7. Power supplied by 9V battery (not included in the package)
Specification:
| tem |
Function |
Model |
Description |
| UT681HDMI |
| Test function |
To test for:
HDMI/MINI-HDMI
|
YES |
|
| Scan test mode |
YES |
LED1~LED19, LED_S |
| Full display test mode |
YES |
LED1~LED19, LED_S |
| To test for the case of short circuit, crossover, open circuit, etc. |
YES |
|
| Ethernet cable: shielded/ unshielded test |
YES |
|
| Manual shutdown function |
YES |
|
| Auto shutdown function |
YES |
No operation within 10 minutes, the device will shut down automatically |
| Single key operation |
YES |
|
| Power supply: 9V battery |
YES |
|
| Low voltage detection |
YES |
About less than 7.2V |
| Application environment |
Working temperature: 0~40℃ |
YES |
|
| Storage temperature: -10~50℃ |
YES |
|
| Working humidity : 20~80% RH |
YES |
|
| Storage humidity : 10~90% RH |
YES |
|
| Altitude: ≤2000 meters |
YES |
|
| Safety standard |
CE EN61326-1: 2013; EN61326-2-2: 2013 |
YES |
|
