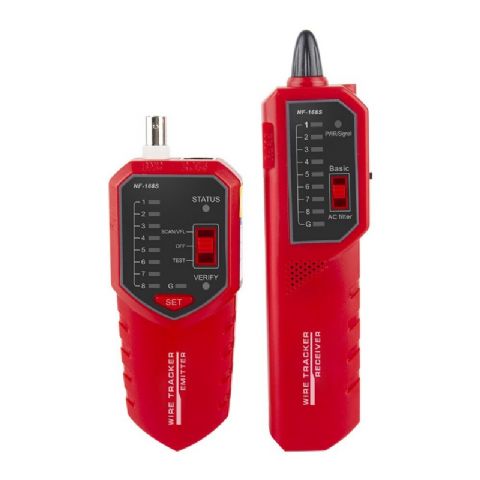

200Hz BNC Cable Tester Wire Tracker Max 3 Kilometers
Zoom Browse
Product Name: 200Hz BNC Cable Tester Wire Tracker Max 3 Kilometers
Product Numbers: NF-168S
Product Specifications: Frequency 200kHz
Product Unit: RJ11, RJ45,BNC
Product Remark: Light display(Wiremap, tone,tracing)
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Cable Finder
Product Details
【DateTime:2021-03-25 Browse:】【Font: Big Mid Small】【Print】【Close

200Hz BNC Cable Tester Wire Tracker Max 3 Kilometers

Features:

1. Quickly tracing & find  Lan/telephone/coax cable which is connected with switch or router.

2. Two scan modes selectable: AC filter & Non AC filter.

3. Check wiremap of Lan cable with receiver directly.

4. Tone tracing breakge points of Lan cables and metal lines.



Technical indexes:

NF-168S Transmitter specifications:
Tone frequency   200Hz
Max. distance of transmission More than 3 kilometers
Max. working current   Less than 10mA
Tone mode   2 Tones, adjustable
Compatible connectors   RJ11, RJ45,BNC
Max. signal voltage   8Vp-p
Function and faults light display Light display(Wiremap, tone,tracing)
Voltage protection   DC 48V
Dimension(LxWxD)   13x4x2cm
NF-168S Receiver specifications:
Frequency   200kHz
The Max. working current   Less than 30mA
Earjack   1pcs
Dimension(LxWxD)   10 x 5 x 2.3cm



Package Include:

1 X transmitter ( battery is not include )
1 X receiver
