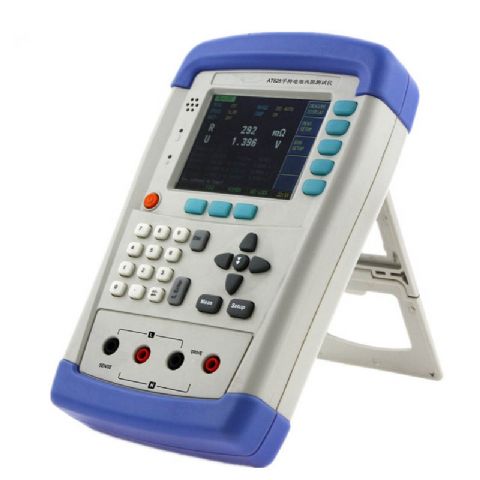

Handheld AC Milliohm Meter Battery Tester 0.001 to 50.00V
Zoom Browse
Product Name: Handheld AC Milliohm Meter Battery Tester 0.001 to 50.00V
Product Numbers: OHMM-AT528L
Product Specifications: R: 0.1m~200.0 V: 1mV~50V
Product Unit: AC resistance, DC voltage
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Battery Resistance Meter
Product Details
【DateTime:2018-04-27 Browse:】【Font: Big Mid Small】【Print】【Close
Handheld AC Milliohm Meter Battery Tester 0.001 to 50.00V

Whats new:

  • Four-terminal testing method
  • Internal, manual and BUS triggers
  • Battery and external power supply
  • Long times of use of battery up to 8 hours
  • Automatic power off when left idle
  • Dual display: ΔABS/Δ%/Sorting Result
  • Auto zero adjusting for each range
  • Mini-USB interface
  • SCPI-compatible command sets
  • Keypad lock function
  • Data hold function
  • Adjustable backlight
  • Portable and lightweight
  • Large TFT color display
  • Stable and accurate
  • Specification:

    Parameters AC resistance, DC voltage
    Accuracy R: 0.5%5dgt V: 0.5%5dgt
    Range R: 0.1m~200.0 V: 1mV~50V
    Signal Source AC: 1kHz Open-circuit Voltage: < 30mv Current: < 15mA
    Range Automatic, Manual, Nominal, 4 ranges
    Speed 2 times/second
    Result Display ABS/PER/SEQ
    Display Max Resistance: 3200 Voltage: 5000
    Adjustment Short-circuit reset for each range
    Comparator Voltage compare separately, resistance compare separately, voltage and resistance combination compare GD/NG sorting result display, beep
    Trigger Internal, Manual, Remote
    Interface Build-in Mini-USB (virtual serial port); Charging Interface; U disc Interface
    Power Suppler Input: 100-240V~50/60Hz 0.35A Output: 9V 1A DC
    Dimension & Weight 130.23mm (Width)*210.76mm (Height)*37.88mm (Depth) 650g
    Accessories ATL501B 4-terminal Kelvin test clip; ATL909: DC adaptor; ATL202 portable bag; ATL804 Li- battery
      ATL105Mini-USB communication cable ATL501C 4-terminal test probe
    Others TFT-LCD display; Auto power-off; Keypad lock; Data hold function; Adjustable Background light; Compatible SCPI Order Set; Switch in both Chinese and English
