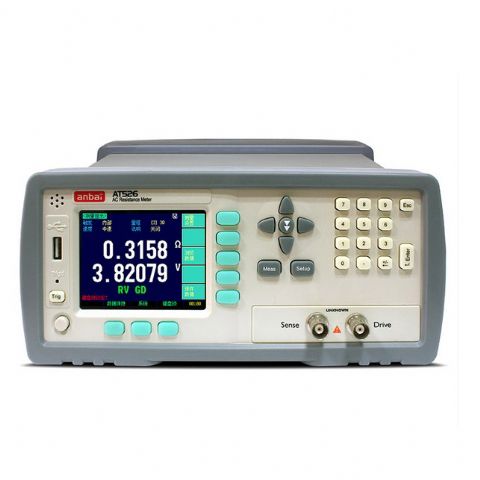

Digital Battery Tester Battery Internal Resistance Meter
Who need this test instrument:
All kinds of contact resistance
Li-battery, alkaline cell and lead accumulator determination of degradation and estimate of lifetime
UPS test on line and lead accumulator factory inspection
ESR test of super capacitor
Specifications:
| Parameters |
AC resistance, DC voltage |
| Accuracy |
Resistance: 0.5% Voltage: 0.1% |
| Range |
Resistance: 0.001m ohm-33k ohm. Voltage: 0.0001V-60.00VDC |
| Signal Source |
AC 1kHz, open-circuit voltage < 20mV, measurement current: < 150mA |
| Range |
Automatic and manual with 5 ranges |
| Speed |
30 t/s, 10 t/s, 1 t/s |
| Result Display |
Show, ABS, %, sorting results |
| Display Max |
Resistance: 33,00, Voltage: 60,00 |
| Adjustment |
Short-circuit reset for all range |
| Comparator |
NG-LO, GD-IN, NG-HI display and output. beep is adjustable |
| Trigger |
Internal, manual, and remote |
| Interface |
RS-232C |
| |
Voltage: 85V AC - 240V AC Frequency: 50Hz Power: Max 15VA |
| |
264mm (Width)x107mm (Height)x350mm (Depth) 4kg |
| |
ATL505 Kelvin test wire, ATL108 RS232 interface cable |
| |
ATL506A: test probe ATL506: test leads |
| |
Detection of damage test wire, true-color TFT-LCD display, keypad lock and data hold function, internal memory and U-disk record |
Packing List:
ATL505 Kelvin test wire, ATL108 RS232 interface cable
