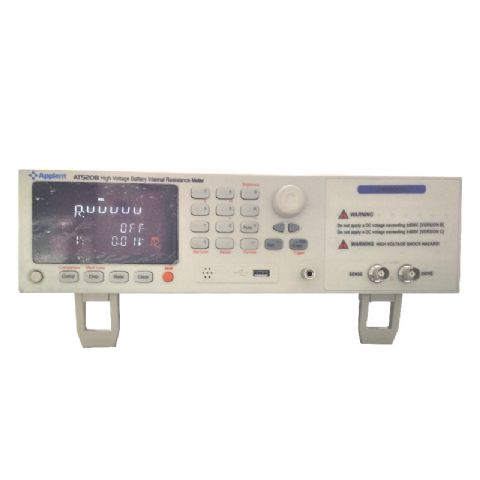

Battery Resistance Tester 0.1mΩ-300Ω AC Resistance, X, Z, θ, L, DC Voltage
Zoom Browse
Product Name: Battery Resistance Tester 0.1mΩ-300Ω AC Resistance, X, Z, θ, L, DC Voltage
Product Numbers: OHMM-AT520B
Product Specifications: Resistance: 0.1mΩ-300Ω
Product Unit: Resistance: 0.1mΩ-300Ω
Product Remark: Automatic or manual with 4 ranges
Product Class:Measuring and Testing Instruments > Electronic test Instruments > Battery Resistance Meter
Product Details
【DateTime:2018-04-27 Browse:】【Font: Big Mid Small】【Print】【Close
Battery Resistance Tester 0.1mΩ-300Ω AC Resistance, X, Z, θ, L, DC Voltage
Specification:

SPECIFICATIONS

Parameters

AC resistance, X, Z, θ, L, DC voltage

Accuracy

Resistance: 0.5%

Voltage: 0.3%

Measurement Range

Resistance: 0.1mΩ-300Ω

Resistance: 0.1mΩ-300Ω

Signal Source

AC 1kHz

open-circuit voltage < 20mV

measurement current: 1mA/0.1mA/10nA/5nA

Range

Automatic or manual with 4 ranges

Speed

20 times/second, 6 times/second, 1 time/second

Result Display

Show, ΔABS, Δ%, θ, sorting result

Max Reading

Resistance: 3,200  Voltage: 7,800

Adjustment

Short-circuit reset for each range, REL function

Comparator

30 groups record, HI/IN/LOW/GD/NG sorting result display and output, beep is adjustable

Trigger

Internal, Manual, External (optional)

Interface

RS-232C interface

Optional Interface

Handler interface (PLC interface)

Others

Detection of damage test wire, four-color vacuum fluorescent screen VFD display, keypad lock and data hold function

GENERAL FEATURES

Power Supply

Voltage: 198V AC - 240V AC  Frequency: 50Hz   Power: Max 15VA

Dimension & Weight

264mm (Width)x107mm (Height)x350mm (Depth), 4kg

ORDERING INFORMATIONS

Accessory

ATL505: Kelvin test wire

Optional Accessories

ATL506A: test probe

ATL506: test leads



Packing list:

ATL505: Kelvin test wire
