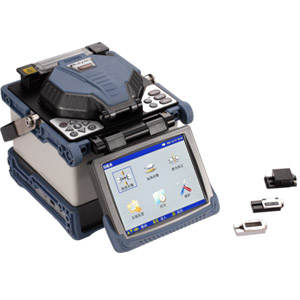

Fusion Fiber Splicer With Fiber Holder
Zoom Browse
Product Name: Fusion Fiber Splicer With Fiber Holder
Product Numbers: FUSP-600H
Product Specifications: Core aligning, clad aligning, manual aligning
Product Unit: Single X or Y view and X & Y view simultaneously
Product Remark: USB & VGA interface
Product Class:Measuring and Testing Instruments > Communication Instruments > Fusion Splicer
Product Details
【DateTime:2014-11-01 Browse:】【Font: Big Mid Small】【Print】【Close
Fusion Fiber Splicer With Fiber Holder

Features
---Digital fusion splicer with automatic focus function
---Fiber core can be display clearly
---Single X or Y view and X & Y view simultaneously
---Auto detect cleaved endface fault
---Display fiber cleaved and offset angle
---Display core and clad offset
---5.6 inch TFT color LCD monitor with clear digital image display
---USB & VGA interface
---Software upgrade via USB interface

Specefications

Model
OPIN-600H with Fiber Holders
Applicable fibers
SM (ITU-T G.652), MM (ITU-T G.651), DS (ITU-T G.653), NZDS (ITU-T G.655)
Fiber cleaved length
10 ~16mm (Coating diameter<250µm);16mm(Coating diameter250~1000µm)
Fiber diameter
Cladding diameter:80 ~150µm , Coating diameter:100 ~1000µm
Auto focusing
Available
Fiber aligning method
Core aligning, clad aligning, manual aligning
Average splice loss
0.02dB (SM), 0.01dB (MM), 0.04dB (DS), 0.04dB( NZDS)
Splicing time
Typical 9 sec,with standard SM fiber
Heating time
Typical 36 sec
Applicable sleeves
60mm, 40mm and a series of micro sleeves
Tension test
2N(option)
Electrode life
5000
Battery capacity
Typical 400 cycles (splice and heat)
Monitor
5.1 inch TFT color monitor
Terminal
USB 1.1 and VGA ,   software upgrade via USB interface
Operating condition
0 ~ 5000m above sea level, 0 ~ 95%RH and -10~50oCC, respectively, Max. wind velocity of 15m/s
Splicing mode
Auto ,normal
Fiber cleaved angle threshold set
0.1 ~ 10.0 degree , 0.1 degree step
Power supply
Li-battery 11.8V  , AC100-240V  DC12.6V/5.0A
Dimension
L169*W152*H155mm
weight
2.4kg   2.9kg(battery)
