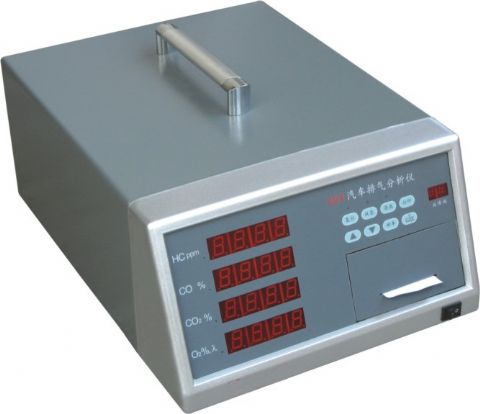

Automobile Exhaust Analyzer HC, CO2, CO,O2
Zoom Browse
Product Name: Automobile Exhaust Analyzer HC, CO2, CO,O2
Product Numbers: VEGA-401
Product Specifications: HC: 0~10000×10-6(ppm)vol
Product Unit: CO: 0~10×10-2(%)vol
Product Remark: HC, CO2, CO,O2
Product Class:Measuring and Testing Instruments > Auto Diagnostic > Vehicle Exhaust Gas Analyzer
Product Details
【DateTime:2015-11-19 Browse:】【Font: Big Mid Small】【Print】【Close
Automobile Exhaust Analyzer HC, CO2, CO,O2

Main technical parameters:
Measuring range:HC: 0~10000×10-6(ppm)vol,CO: 0~10×10-2(%)vol
              CO2: 0~20×10-2(%)vol, O2: 0~25×10-2(%)vol
              R.M.P: 0~9999r.m.p   OIL TEMP:0~150℃
              Lambda: 0.50~3.00    COcor:0~10×10-2(%)vol
Indicating error:HC±12×10-6(ppm)vol ( absolute error ) or±5% ( relative error )
                        CO±0.06×10-2(%)vol ( absolute error ) or±5% ( relative error )
                        CO2±0.5×10-2(%)vol ( absolute error ) or±5% ( relative error )
                        O2±0.1×10-2(%)vol ( absolute error ) or±5% ( relative error )
Stability:moment drift≤±3%
Repeatability ≤±2%
Resolution: HC:1×10-6(ppm)vol, CO: 0.01×10-2(%)vol
                   CO2: 0.1×10-2(%)vol, O2: 0.01×10-2(%)vol,     Lambda: 0.01
R.P.M:10r.p.m,  OIL TEMP:0.1℃
Response time: 95% response is not more than 10 seconds
Preheating time: 8min ( preheating 3min emergency detection )
    Output mode: digital direct reading, gases can be attached printer name, in accordance with national standards and the average concentration of the maximum value, test time, date. Can interface with computer
networking.
And-use temperature: -5~50°C,  Relative humidity: ≤90%
Power:     AC100~240V 50/60Hz or DC12V( Add power inverter)
Power consumption: 40VA
Dimension:  420 (L )×310(W)×170(H)mm
Weight:     9kg
