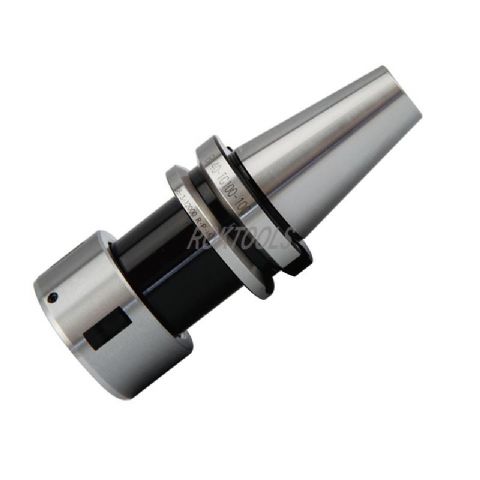

TG Collet Chuck
Features:
Materail: Alloyed Steel
Max run out: <0.005mm
Taper tolerance:
Surface Roughness: Ra<0.005mm
Cooling AD+B type can be made by request
When Order, please specify balancing G6.3 or G2.5
Shank body standard: MAS 403
Specification:
|
Model
|
L
|
l1
|
D
|
d1
|
t2
|
T
|
Wt(kg)
|
|
BT30-TG75-100
|
148.4
|
100
|
46
|
50
|
M16×2.0P
|
TW1-1/2” 12
|
1.15
|
|
BT30-TG 100-100
|
148.4
|
100
|
46
|
60
|
M16×2.0P
|
TW1-7/8” 12UN
|
1.20
|
|
|
|
|
|
|
|
|
|
|
BT40-TG100-70
|
135.4
|
70
|
63
|
60
|
M16×2.0P
|
TW1-7/8” 12UN
|
1.36
|
|
BT40-TG100-100
|
165.4
|
100
|
63
|
60
|
M16×2.0P
|
TW1-7/8” 12UN
|
1.90
|
|
BT40-TG 100-120
|
185.4
|
120
|
63
|
60
|
M16×2.0P
|
TW1-7/8” 12UN
|
2.38
|
|
BT40-TG150-105
|
170.4
|
105
|
63
|
82
|
M24×2.0P
|
TW2-5/8” 12
|
2.70
|
|
BT40-TG150-120
|
185.4
|
120
|
63
|
82
|
M24×2.0P
|
TW2-5/8” 12
|
2.90
|
|
|
|
|
|
|
|
|
|
|
BT50-TG100-85
|
186.8
|
85
|
100
|
60
|
M24×2.0P
|
TW1-7/8” 12UN
|
3.40
|
|
BT50-TG100-100
|
201.8
|
100
|
100
|
60
|
M24×2.0P
|
TW1-7/8” 12UN
|
4.40
|
|
BT50-TG 100-120
|
221.8
|
120
|
100
|
60
|
M24×2.0P
|
TW1-7/8” 12UN
|
5.10
|
|
BT50-TG 150-90
|
191.8
|
90
|
100
|
82
|
M24×2.0P
|
TW2-5/8” 12
|
5.70
|
|
BT50-TG150-105
|
206 .8
|
105
|
100
|
82
|
M24×2.0P
|
TW2-5/8” 12
|
6.10
|
|
BT50-TG150-120
|
221.8
|
120
|
100
|
82
|
M24×2.0P
|
TW2-5/8” 12
|
6.50
|
