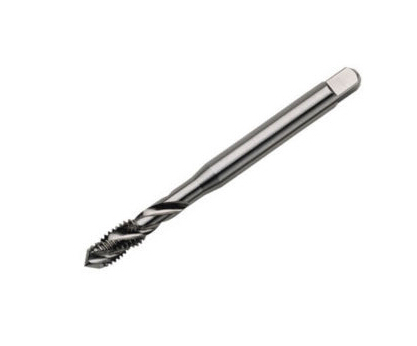

DIN 371 W/BSF HSS Threading Taps With Spiral Flute
Zoom Browse
Product Name: DIN 371 W/BSF HSS Threading Taps With Spiral Flute
Product Numbers: TAPS-12901
Product Specifications: Size: W1/16-60
Product Unit: China Machine Taps
Product Remark: DIN 371 W/BSF
Product Class:Machinery and Engineering Tools > Cutting Tools For Machine > Taps DIN
Product Details
【DateTime:2015-06-28 Browse:】【Font: Big Mid Small】【Print】【Close
DIN 371 W/BSF HSS Threading Taps With Spiral Flute

Part No: TAPS-12901
  British Whitworth fine thread
  British Whitworth
Order No
Size (mm)
Over length (mm)
Flute Length (mm)
TAPS-12901
W1/16-60
40
8
TAPS-12902
W3/32-48
50
9
TAPS-12903
W1/8-40
56
11
TAPS-12904
W5/32-32
63
13
TAPS-12905
W3/16-24
70
15
TAPS-12906
W7/32-24
80
16
TAPS-12907
W1/4-20
80
17
TAPS-12908
W5/16-18
90
20
TAPS-12908
W3/8-16
100
22
TAPS-12910
BSF3/16-32
70
15
TAPS-12911
BSF1/4-26
80
17
TAPS-12912
BSF5/16-22
90
20
TAPS-12913
BSF3/8-20
100
22
