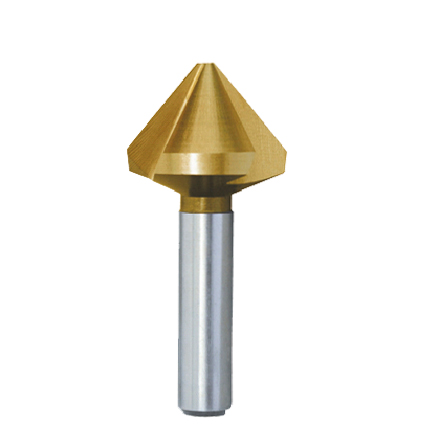

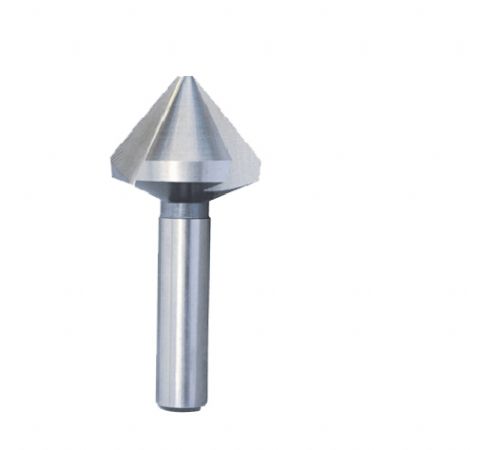

DIN 334C 60 Degree Taper Deburring Countersink Drill
Application: For Deburring and countersink. Best results at low cutting speed. It can be used for holding material between machine centers
Features:
Taper: 60 degree
Meet DIN334C
CBN fully gournd flute and surface
Three flutes provide better chip clearance than four flutes to prevent clogging
Material sheet:
| China |
European |
American |
Japanese |
HRC |
| HSS6542 |
HSS |
M2 |
SKH-51 |
63-65 |
|
Order No
|
Diameter 2 (mm)
|
Shank (mm)
|
Overall Length (mm)
|
|
CODR-23001
|
6.3
|
5
|
45
|
|
CODR-23002
|
8.0
|
|
|
|
CODR-23003
|
10.0
|
|
|
|
CODR-23004
|
12.5
|
|
|
|
CODR-23005
|
16.0
|
10
|
63
|
|
CODR-23006
|
20.0
|
|
|
|
CODR-23007
|
25.0
|
|
|
